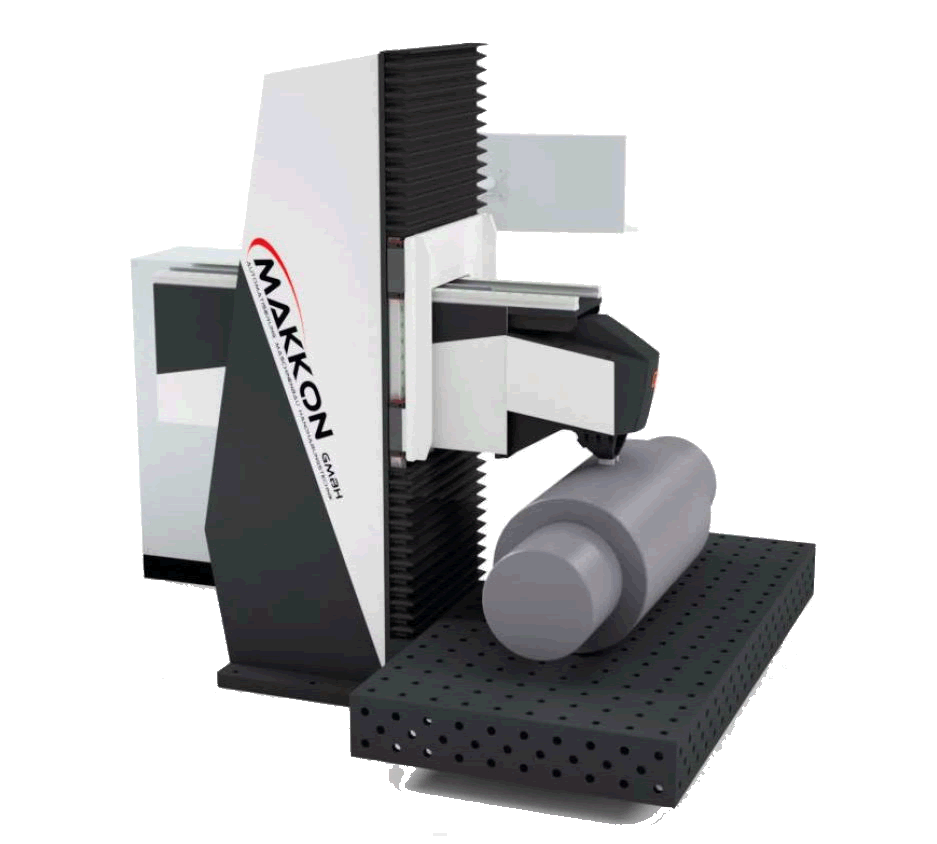

Brinell hardness tester

Brinell hardness tester

S001 - QEco 3000 M (Milling)

Eckdaten / Key data:

  • Grosse Teile / For steel bars and big samples

  • Oberflächenvorbereitung / Surface preparation till 7 mm

  • Prüfmethode / Testmethod HBW10/3000

  • Prüfhöhe / Testheight 500 - 2000 mm

  • Späneabsaugung / Suction unit

BHT-1000

Brinell Hardness tester BHT 1000

S002 - BHT für HBW

Eckdaten / Key data:

  • Grosse Teile / For steel bars and big samples

  • Prüfmethode / Testmethod HBW10/3000

  • Prüfhöhe / Testheight 0 - 1000 mm

  • Ausladung / Throat depth 0 - 1000 mm

  • Bewegungen elektrisch / Movement electrically

  • Option drehbarer Prüftisch / Optionally turnable stage

Härteprüfmaschine Hardnesstester

Roundtable with milling station and Qness 3000E machine

S003 - Qsolution Round parts

Eckdaten / Key data:

  • Stahlteile / For steel bars

  • Basismaschine / Basic machine Qness 3000E EVO

  • Rundtisch mit Spannvorrichtungen / Round table with clamping device

  • Automatischer Ablauf / Automatic process

  • Oberflächenvorbereitung / Surface preparation

  • Zykluszeit / Cycle time approx. 35 sec.

Tooth hardness tester

Rockwell hardness tester

S004 - Qsolution for Steel parts

Eckdaten / Key data:

  • Grosse Zahnräder / Big tooth samples

  • Vorrichtungen / Different devices

  • HRC Prüfeinheit / HRC test unit

  • XYZ-Achsen / Moving of test unit XYZ

  • Grosse Teile beladbar / Big samples loadable

Crankshaft hardness tester

Crankshaft hardness tester

S005 - Qness 250 E (Crankshaft)

Eckdaten / Key data:

  • Kurbelwellen bis 1 m / 4-5-6 cylinder till 1 m

  • Basismaschine / Basic machine Qness 250E

  • Grosser X-Tisch / Big moveable X-stage

  • Vorrichtungen / Devices for crankshafts

  • Alle Haupt- und Hublager nach HRC / All main-and pinbearings reg. HRC tested

Wheel hardness testing inline

Brinell hardness tester inline- wheels

S006 - Qsolution

Eckdaten / Key data:

  • Radreifen und Räder / For wheels 700 - 1200 mm

  • Inlinelösung / Inline solution

  • Prüfmethode / Testmethod HBW10/3000

  • Prüfmöglichkeit / 3 x 120° testpoints possible

  • Ohne Oberflächenvorbereitung / Without surface preparation

Rim hardness testing inline

Rim hardness testing automat

S007 - Qsolution

Eckdaten / Key data:

  • Alu-Felgen / For Alu rims

  • Werkstück drehbar / Turnable samples

  • Prüfmethode / Testmethod HBT2,5/62,5

  • Roboterhandling / Loading and unloading by robotics

  • Zykluszeit / Cycle time about 15 sec.

Cylinderhead hardness tester inline

Cylinderhead hardness tester

S008 - Qsolution Inline

Eckdaten / Key data:

  • Zylinderköpfe / For 4-cylinderheads

  • Prüfmethode / Testmethod HBT 5/250

  • Zykluszeit / Cycle time about 15 sec.

  • Markierstation / Marking station

  • Rollengang / Transportation with roller conveyor

  • Verschiedene Zylinderköpfe / Different types of cylinderhead

Wheel hardness testing automat inline

Brinell hardness tester inline - wheels

S009 - Qsolution

Eckdaten / Key data:

  • Radreifen / For wheels 700 - 1200 mm

  • Prüfmethode / Testmethod HBW10/3000

  • Oberflächenvorbereitung / Surface preparation

  • Spektralanalyse / Spectral analysis

  • Markierstation / Marking station

  • Rollengang / Automatic Roller table
